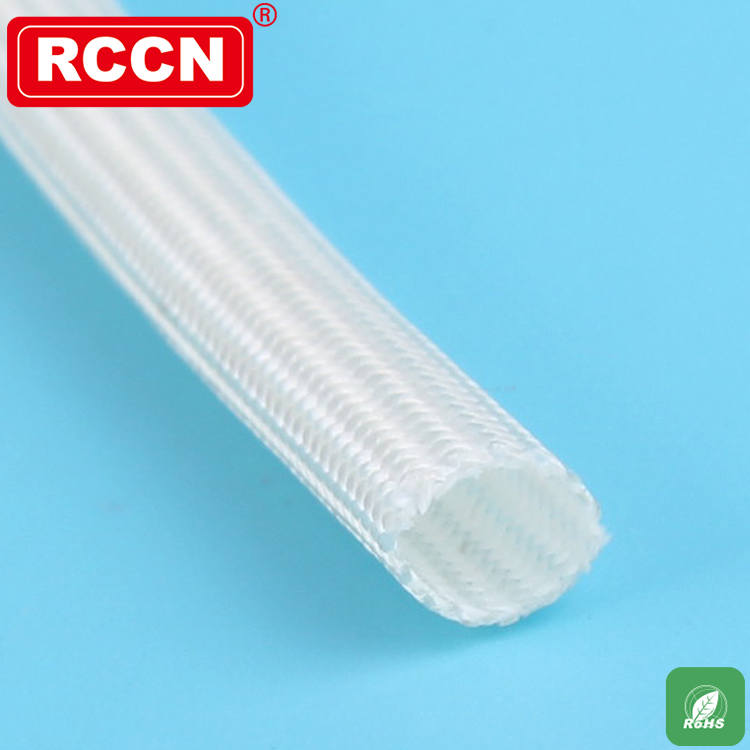

SRGH is a new type of special high temperature glass fiber casing
color: White
Features: flame retardant, high temperature
Uses: Mainly used in automobiles, shipbuilding, electric devices, electron beam lines, lighting, electrical equipment and so on.
| Item No. | Nominal inner diameter |
Wall thickness W （mm） |
Temperature-resistance |
Voltage-resistance |
Flame resistance |
| size | |||||
| SRGH-0.5 | Φ0.5 | 0.2±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-1 | Φ1.0 | 0.2±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-1.5 | Φ1.5 | 0.2±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-2 | Φ2.0 | 0.2±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-2.5 | Φ2.5 | 0.2±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-3 | Φ3.0 | 0.2±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-4 | Φ4.0 | 0.3±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-5 | Φ5.0 | 0.3±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-6 | Φ6.0 | 0.3±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-7 | Φ7.0 | 0.35±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-8 | Φ8.0 | 0.35±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-9 | Φ9.0 | 0.35±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-10 | Φ10.0 | 0.35±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-11 | Φ11 | 0.35±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-12 | Φ12 | 0.35±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-14 | Φ14 | 0.43±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-15 | Φ15 | 0.43±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-16 | Φ16 | 0.43±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-17 | Φ17 | 0.43±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-18 | Φ18 | 0.43±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-19 | Φ19 | 0.43±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-20 | Φ20 | 0.43±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-22 | Φ22 | 0.43±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-23 | Φ23 | 0.43±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-23 | Φ23 | 0.43±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-24 | Φ24 | 0.43±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-25 | Φ25 | 0.43±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-26 | Φ26 | 0.43±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-27 | Φ27 | 0.43±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-28 | Φ28 | 0.43±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-29 | Φ29 | 0.43±0.05 | -60℃~600℃ | 300~700V | VW-1 |
| SRGH-30 | Φ30 | 0.43±0.05 | -60℃~600℃ | 300~700V | VW-1 |
