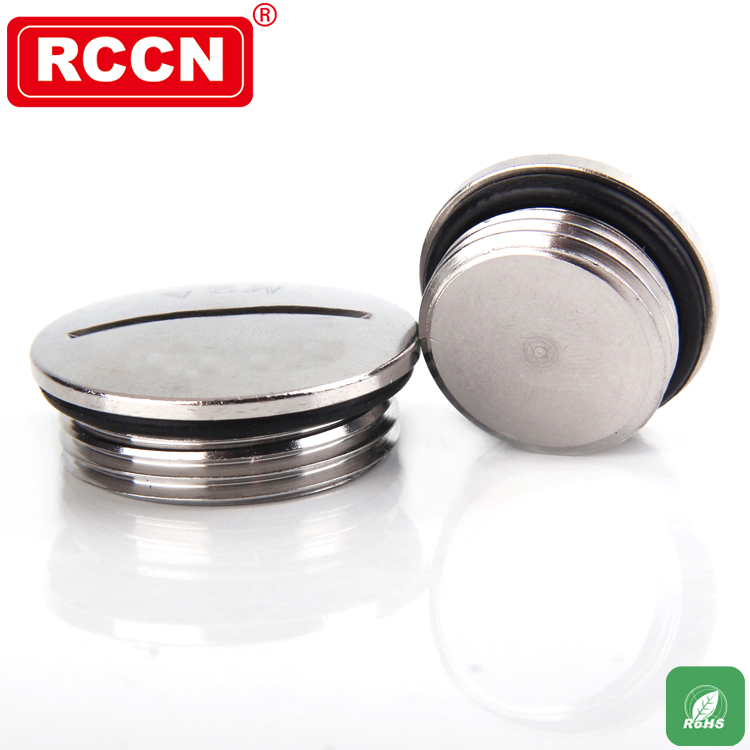

Round stainless steel plug, stainless steel boring cover, metal boring cover -RCCN

Item No	Thread DimensionThread diameter	AG mm	Thread length L1 mm	Total length mm	Head dia.D mm	Std.Pkg PCS
MSPRS-M Metric Thread
MSPRS-M10	M10xl.0	10	6	9	12	50
MSPRS-M12	M12xl.5	12	6	9	14	50
MSPRS-M16	M16xl.5	16	7	10	18	50
MSPRS-M18	M18xl.5	18	7	10	21	50
MSPRS-M20	M20xl.5	20	7	10	23	50
MSPRS-M22	M22xl.5	22	7	10	25	50
MSPRS-M24	M24xl.5	24	7	10	27	50
MSPRS-M25	M25xl.5	25	7	10	28	25
MSPRS-M27	M27x2.0	27	7	11	30	25
MSPRS-M30	M30x2.0	30	7	11	33	25
MSPRS-M32	M32xl.5	32	8	12	35	20
MSPRS-M33	M33x2.0	33	8	12	36	20
MSPRS-M36	M36x2.0	36	8	12	39	20
MSPRS-M40	M40xl.5	40	9	15	44	20
MSPRS-M42	M42x2.0	42	9	15	46	20
MSPRS-M48	M48x2.0	48	9	15	52	20
MSPRS-M50	M50xl.5	50	9	15	54	10
MSPRS-M56	M56x2.0	56	9	15	60	10
MSPRS-M63	M63xl.5	63	10	16	67	5
MSPRS-M64	M64x2.0	64	10	16	68	5
MSPRS-PG PG Thread
MSPRS-PG07	PG7	12.5	6	9	14	50
MSPRS-PG09	PG9	15.2	7	10	18	50
MSPRS-PG11	PG11	18.6	7	10	21	50
MSPRS-PG13.5	PG13.5	20.4	7	10	23	50
MSPRS-PG16	PG16	22.5	7	10	25	50
MSPRS-PG21	PG21	28.3	7	11	31	25
MSPRS-PG29	PG29	37	8	12	40	20
MSPRS-PG36	PG36	47	9	15	50	10
MSPRS-PG42	PG42	54	9	16	57	10
MSPRS-PG48	PG48	59.3	10	16	64	5
