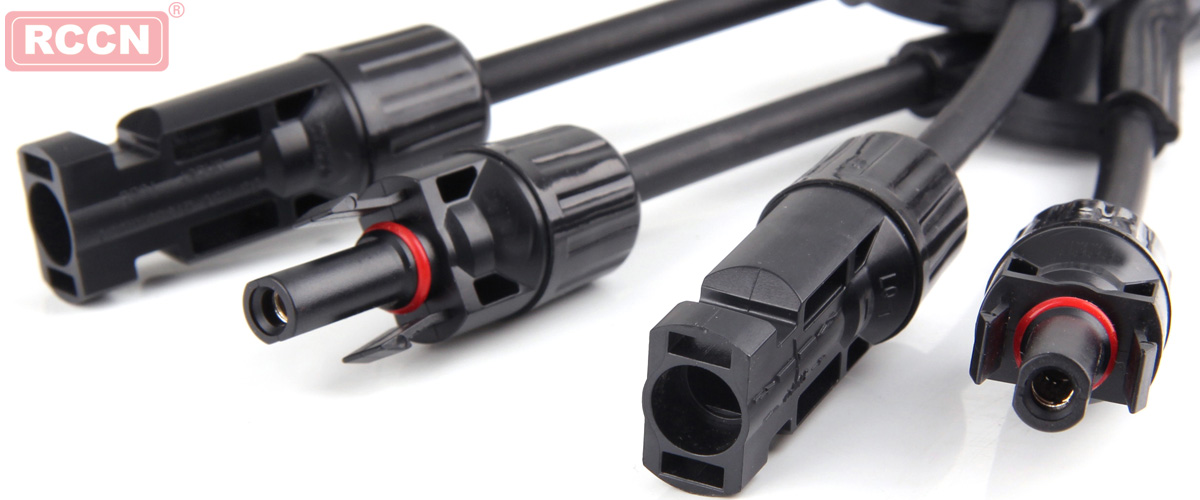

MC4 PV cable out of a connector

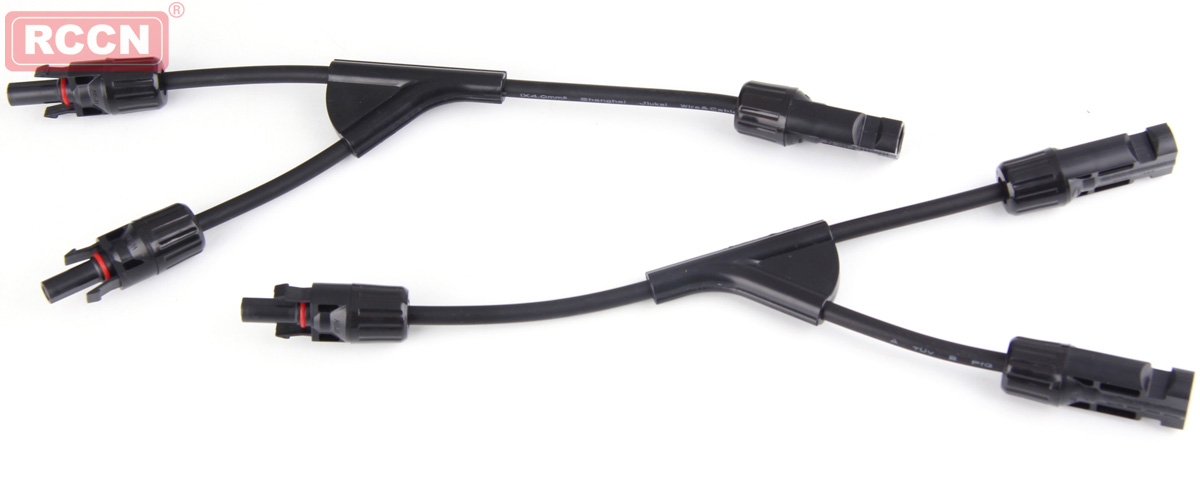

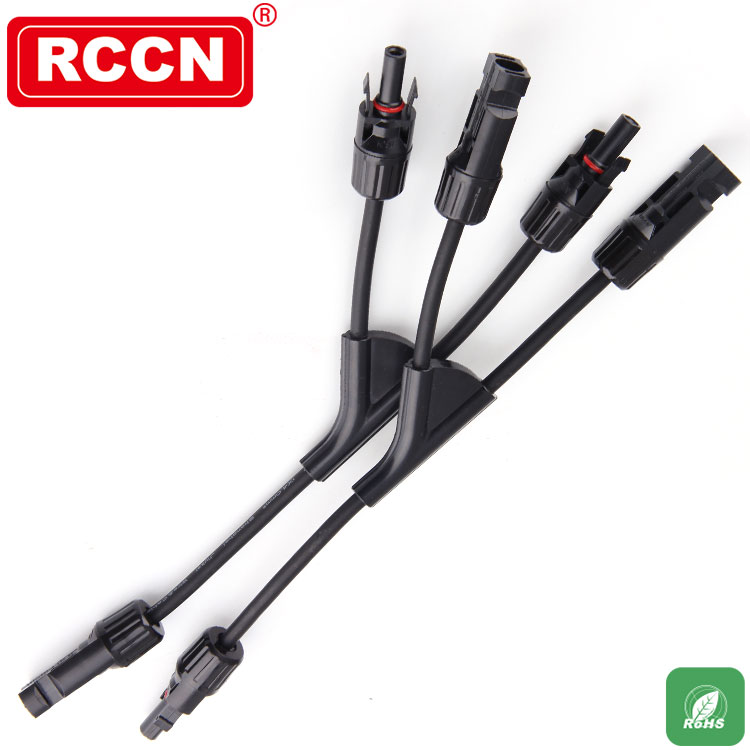

Model: LQ-1B2X three-way convergence connector

Material: PV connector for PPO material, hardware for the copper tin (contact resistance ≤ 0.5Ω)
Performance: anti-ultraviolet, corrosion-resistant, high and low temperature resistance, high current, low loss (low contact resistance), high life
Rated voltage: 1500V DC (IEC) 800V DC (UL)
Rated current: 30A
Ambient temperature range: -40 ° C to 85 ° C (IEC)
Lock the system header: MC4
Protection class: IP67
This connector is available for 2.5mm², 4mm² and 6mm² PV cables, please check the cable square

Three-way convergence connector, MC4 photovoltaic cable out of a LQ-1B2X adapter, MC4 connector and connect the plug
