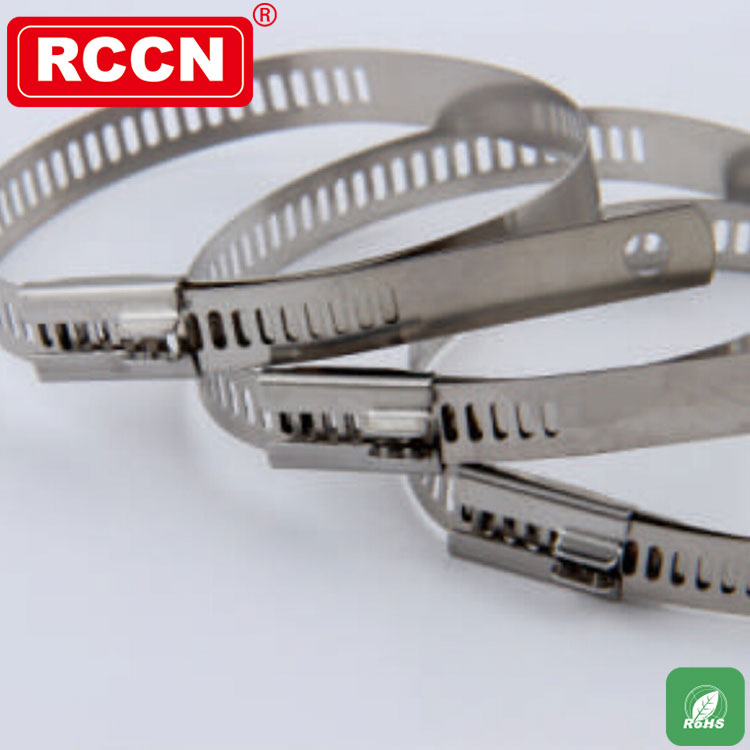

Stepped stainless steel light band

JT stepped multi - lock stainless steel light band

Metal material: Stainless steel 304 or 316
Operating temperature: -80 ° C to 538 ° C
Product Description: Metal color
Fire rating: Flame retardant
Material characteristics: anti-ultraviolet Product Features
Strong self-locking paper does not require extra curling and
Folding ® rubbing: buckle simple and practical, easy to operate;
Located in the tail of the large slot to facilitate the use of hook-type tools;
Than the single hook ladder-type cable tension greater,

Tie, stainless steel light band

Specification

	Width		Length		Thickness		Max.Bundle Dla.		Min.Bundle Dla.		Min Tensile Strength		Recommended
Item No.	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	N	lbs	Installation Tool
Standard Cross Section
JT-07*150	7.0	0.28	150	5.91	0.3	0.012	40	1.57	12.7	0.5	667	150	CT02 HT338
JT-07*225			225	8.86			62	2.44
JT-07*300			300	11.81			81	3.19
JT-07*400			400	15.75			113	4.45
JT-07*450			450	17.72			127	5.00
JT-07*550			550	21.65			159	6.26
JT-07*600			600	23.62			176	6.93
JT-07*700			700	27.56			207	8.15
JT-07*800			800	31.50			238	9.37
JT-12*150	12	0.47	150	5.91	0.3	0.012	40	1.57	25.4	1.00	1000	225	CT02
JT-12*225			225	8.86			62	2.44
JT-12*300			300	11.81			81	3.19
JT-12*400			400	15.75			113	4.45
JT-12*450			450	17.72			127	5.00
JT-12*550			550	21.65			159	6.26
JT-12*600			600	23.62			176	6.93
JT-12*700			700	27.56			207	8.15
JT-12*800			800	31.50			238	9.37
