Metal Flexible Conduit Fittings

Thread:G,Metric, PG

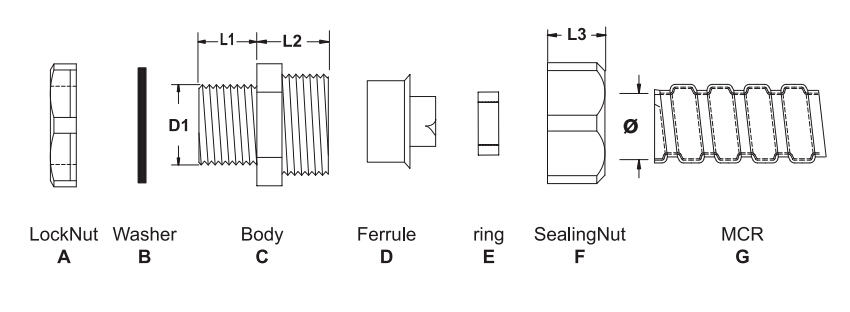

Material:A.C.F are made from zincic metal.B.E
are made of rubber NBR).D is made
of sheet iron .
Certificates:CE
Color:Argentine
Protect class:IP6
Work T.:-40°C to 100°C,120°C in a short time.
Products characteristics: 1.thickness added zincic metal,good looking
2.conmmon impregnant resistant,such as water,salty,alcohol,oil, grease and so on.
3.we can adjust the sizes according to your request.
Marks:The finished goods are including locknut and washer.

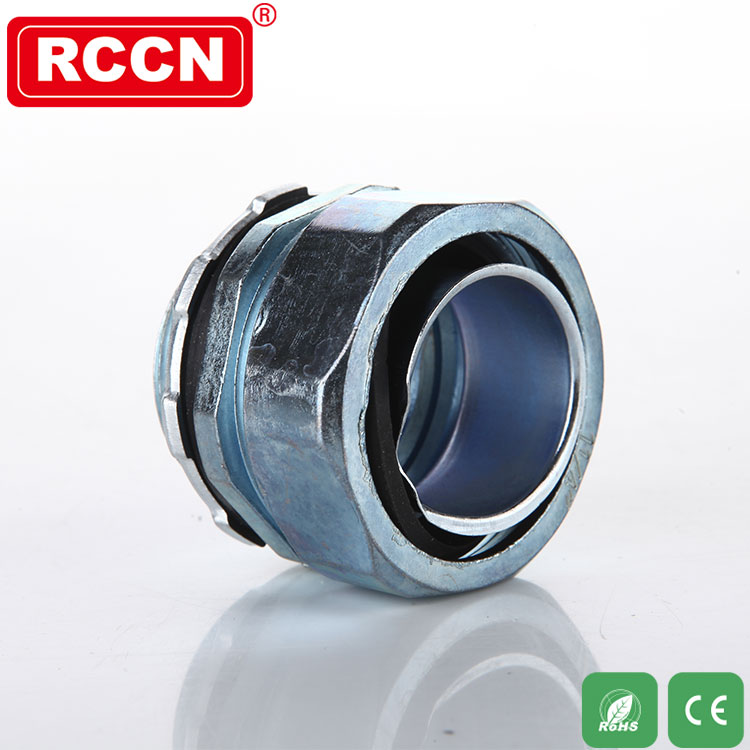

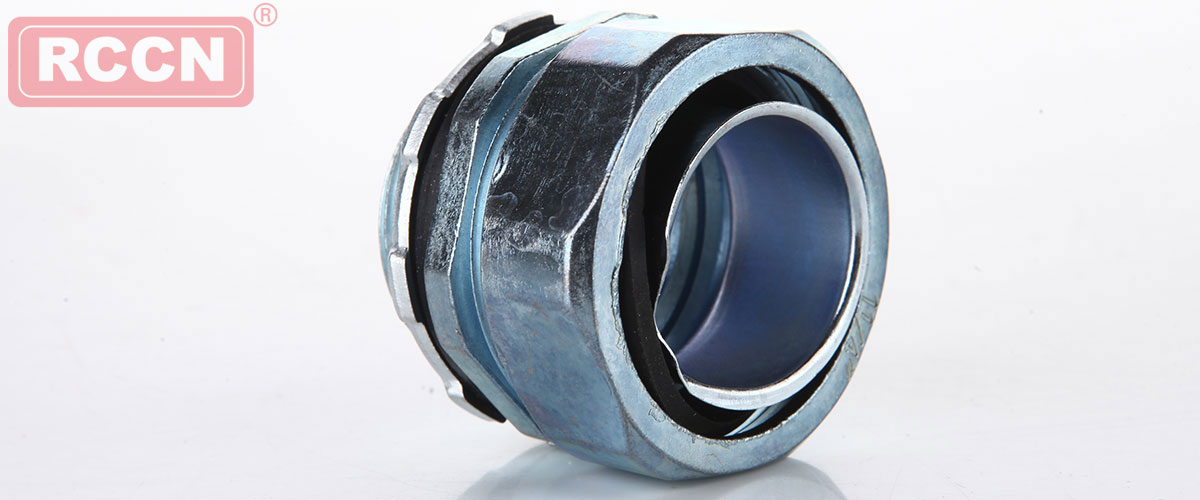

Metal Flexible Conduit Fittings NBG

Item No.	Thread	Matching Nissan metal hose MCR			Thread O.D.	Thread Length	Joint Length	Packing pcs


Zinc alloy	G/M/PG	Corresponding model	Metric	Imperial system	D1	L1	L2+L3
Pipe thread NBG-G
NBG-01G	G1/4"	MCR-01	6	3/16"	13.2	8	16	100
NBG-02G	G1/4"	MCR-02	8	5/16"	13.2	8	16	100
NBG-03G	G3/8"	MCR-03	10	1/4"	16.5	8	17	100
NBG-04G	G3/8"	MCR-04	13	3/8"	16.5	8	18	100
NBG-05G	G1/2"	MCR-05	16	1/2"	21.3	11	23	100
NBG-06G	G3/4"	MCR-06	20	3/4"	26.6	14	22	50
NBG-08G	G1"	MCR-08	25	1"	33.4	15	28	50
NBG-10G	G1 1/4"	MCR-10	32	11/4"	42.1	15	30	25
NBG-12G	G1 1/2"	MCR-12	38	11/2"	47.8	16	32	25
NBG-16G	G2"	MCR-16	51	2	59.6	18	34	10
NBG-20G	G2 1/2"	MCR-20	64	21/2"	75.1	22	38	10
NBG-24G	G3"	MCR-24	80	3"	87.8	22	46	5
NBG-32G	G4"	MCR-32	100	4"	113	24	50	5
Metric thread NBG-M
NBG-01M	M14*1.5	MCR-01	6	3/16"	M14*1.5	8	16	100
NBG-02M	M14*1.5	MCR-02	8	5/16"	M14*1.5	8	16	100
NBG-03M	M16*1.5	MCR-03	10	1/4"	M16*1.5	8	17	100
NBG-04M	M16*1.5	MCR-04	13	3/8"	M16*1.5	8	18	100
NBG-05M	M20*1.5	MCR-05	16	1/2"	M20*1.5	11	23	100
NBG-06M	M25*1.5	MCR-06	20	3/4"	M25*1.5	14	22	50
NBG-08M	M32*1.5	MCR-08	25	1"	M32*1.5	15	28	50
NBG-10M	M40*1.5	MCR-10	32	11/4"	M40*1.5	15	30	25
NBG-12M	M50*1.5	MCR-12	38	11/2"	M50*1.5	16	32	25
NBG-16M	M63*1.5	MCR-16	51	2"	M63*1.5	18	34	10
NBG-20M	M76*2	MCR-20	64	21/2"	M76*2	22	38	10
NBG-24M	M88*2	MCR-24	80	3"	M88*2	22	46	5
NBG-32M	M114*2	MCR-32	100	4"	M114*2	24	50	5
German thread NBG-PG
NBG-03P	PG9	MCR-03	10	1/4"	15.2	8	16	100
NBG-04P	PG11	MCR-04	13	3/8"	18.6	9	17	100
NBG-05P	PG13.5	MCR-05	16	1/2"	20.4	11	23	100
NBG-06P	PG21	MCR-06	20	3/4"	28.3	14	23	50
NBG-08P	PG29	MCR-08	25	1"	37	15	28	50
NBG-10P	PG29	MCR-10	32	11/4"	37	15	30	25
NBG-12P	PG36	MCR-12	38	11/2"	47	16	32	25
NBG-16P	PG48	MCR-16	51	2"	59.3	18	34	10
