RCCN Lug Terminals EN

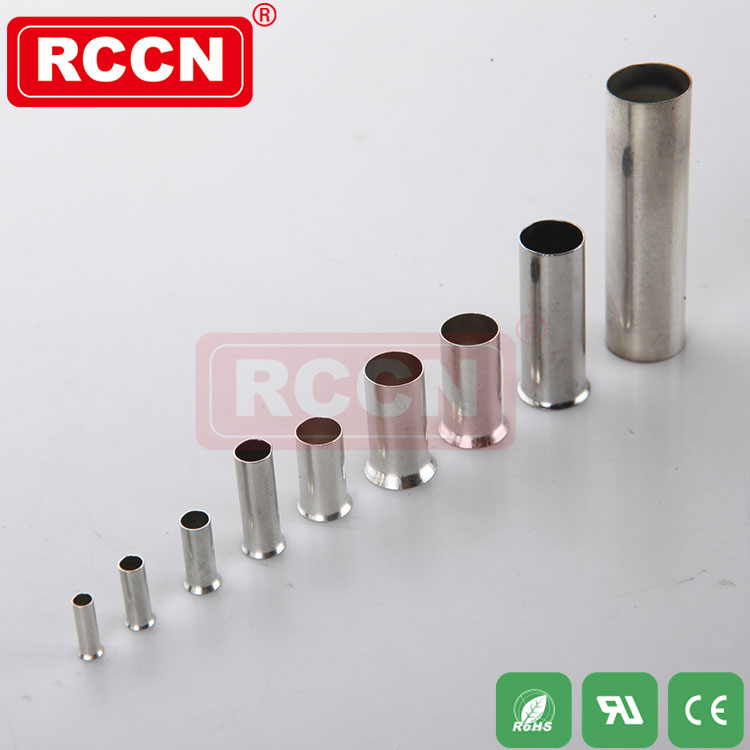

Non-Insulated Cord End Terminals

Use note：series from 0.25to 16 installed
by tool of YAC series series
25 to 150 installed by tool of
YYT series
Lug Terminals,cold terminal,copper terminal,cold crimp terminal standard

Specification

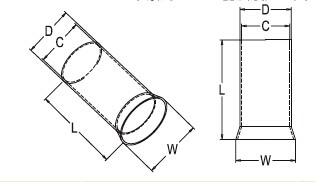

Item No. DIMENSION Insulated square
L D C W A.W.G mm2
mm mm mm mm
EN0.5-6 6.0 1.3 1.0 1.7 #22 0.5
EN0.5-8 8.0 1.3 1.0 1.7 #22 0.5
EN0.5-10 10.0 1.3 1.0 1.7 #22 0.5
EN0.5-12 12.0 1.3 1.0 1.7 #22 0.5
EN0.75-6 6.0 1.5 1.2 1.9 #20 0.75
EN0.75-8 8.0 1.5 1.2 1.9 #20 0.75
EN0.75-10 10.0 1.5 1.2 1.9 #20 0.75
EN0.75-12 12.0 1.5 1.2 1.9 #20 0.75
EN1.0-6 6.0 1.7 1.4 2.2 #18 1.0
EN1.0-8 8.0 1.7 1.4 2.2 #18 1.0
EN1.0-10 10.0 1.7 1.4 2.2 #18 1.0
EN1.0-12 12.0 1.7 1.4 2.2 #18 1.0
EN1.5-8 8.0 2.0 1.7 2.5 #16 1.5
EN1.5-10 10.0 2.0 1.7 2.5 #16 1.5
EN1.5-12 12.0 2.0 1.7 2.5 #16 1.5
EN1.5-18 18.0 2.0 1.7 2.5 #16 1.5
EN2.5-8 8.0 2.5 2.2 3.3 #14 2.5
EN2.5-10 10.0 2.5 2.2 3.3 #14 2.5
EN2.5-12 12.0 2.5 2.2 3.3 #14 2.5
EN2.5-18 18.0 2.5 2.2 3.3 #14 2.5
EN4.0-9 9.0 3.2 2.8 3.9 #12 4.0
EN4.0-12 12.0 3.2 2.8 3.9 #12 4.0
EN4.0-18 18.0 3.2 2.8 3.9 #12 4.0
EN6.0-10 10.0 3.9 3.5 4.8 #10 6.0
EN6.0-12 12.0 3.9 3.5 4.8 #10 6.0
EN6.0-15 15.0 3.9 3.5 4.8 #10 6.0
EN6.0-18 18.0 3.9 3.5 4.8 #10 6.0
EN10-12 12.0 4.9 4.5 5.8 #7 10.0
EN10-15 15.0 4.9 4.5 5.8 #7 10.0
EN10-18 18.0 4.9 4.5 5.8 #7 10.0
EN16-12 12.0 6.2 5.8 7.2 #5 16.0
EN16-15 15.0 6.2 5.8 7.2 #5 16.0
EN16-18 18.0 6.2 5.8 7.2 #5 16.0
EN25-16 16.0 7.9 7.5 9.1 #4 25.0
EN25-22 22.0 7.9 7.5 9.1 #4 25.0
EN35-16 16.0 8.7 8.3 10.2 #2 35.0
EN35-25 25.0 8.7 8.3 10.2 #2 35.0
EN50-20 20.0 10.9 10.3 12.4 #1 50.0
EN50-25 25.0 10.9 10.3 12.4 #1 50.0
