RCCN Lug Terminals BF

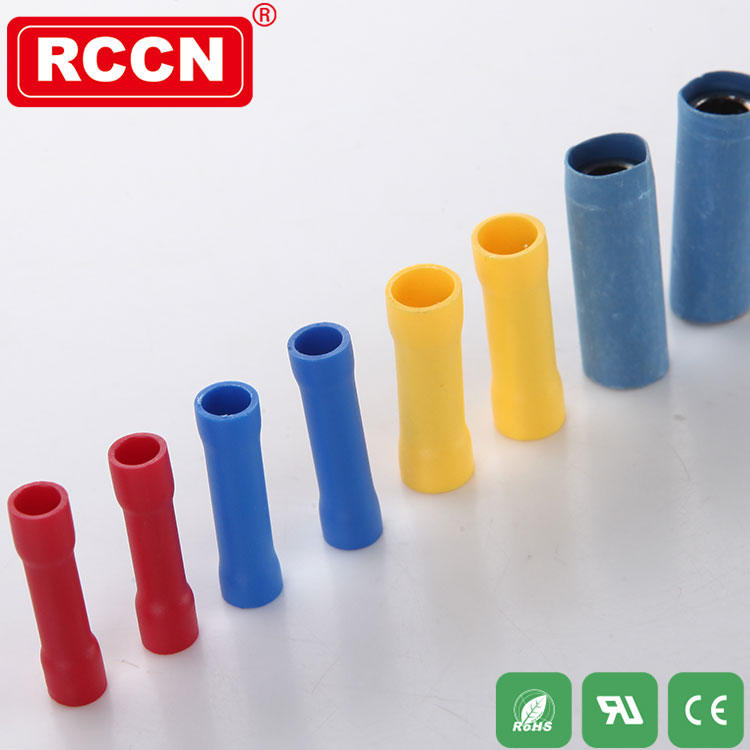

Insulated Butt Spice Terminals

Material: Terminals made of high quality copper, good conductivity, high-quality
ROHS-PVC jacket system, durability is not easy aging.
Features: high-quality matte plating, anti-rust greatly extended time, no sharp parts;
supporting the day into the terminal clamp to clamp the wire, wiring beautiful,
International Certification: EU RoHS environmental certification, the European CE certification.
Features: high quality, not broken after release loose, -40 degrees to 85 degrees heat-resistant normal use.
Use way: the wire stripped skin, copper wire into the terminal after

Insulated Butt Spice Terminals BF

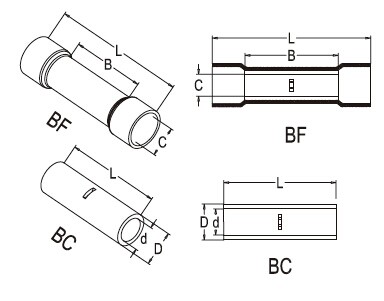

Specification

RCCN BF Insulated Butt Spice Terminals Standard style

Item No	Conduct square		DIMENSION			Imax	INSULATION COLOR
	A.W.G	mm2	B	C	L
	A.W.G	mm2	mm	mm	mm
BF1.25	22～16	0.5～1.5	15.0	1.7	26.0	19A	Red
BF2	16～14	1.5～2.5	15.0	2.3	26.0	27A	Blue
BF5.5	12～10	4～6	15.0	3.4	26.0	48A	Yellow
BF8	#8	6～10	21.0	4.5	32.0	62A	Red
BF14	#6	10～16	26.0	5.8	42.0	88A	Blue
BF22	#4	16～25	29.0	7.7	50.0	115A	Yellow
BF38	#2	35～50	32.0	9.4	55.0	160A	Red

RCCN SHORT BUTT Short form style

Item No	Conduct square		DIMENSION			Imax	INSULATION COLOR
	A.W.G	mm2	B	C	L
	A.W.G	mm2	mm	mm	mm
BFS1.25	22～16	0.5～1.5	8.0	1.7	16	19A	Red
BFS2	16～14	1.5～2.5	8.0	2.3	16	27A	Blue
BFS5.5	12～10	4～6	8.5	3.4	20.5	48A	Yellow
