RCCN Lug Terminals ETN

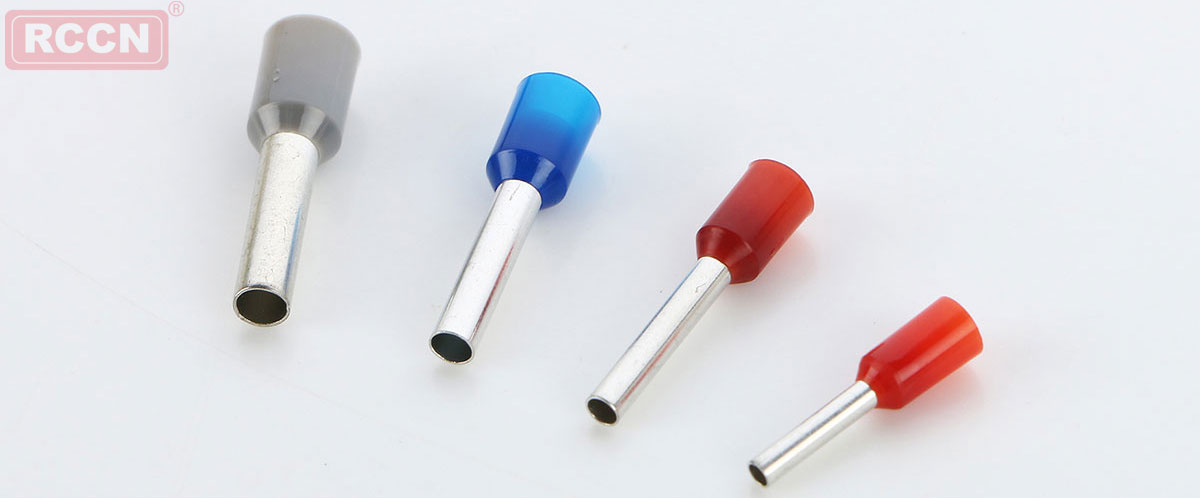

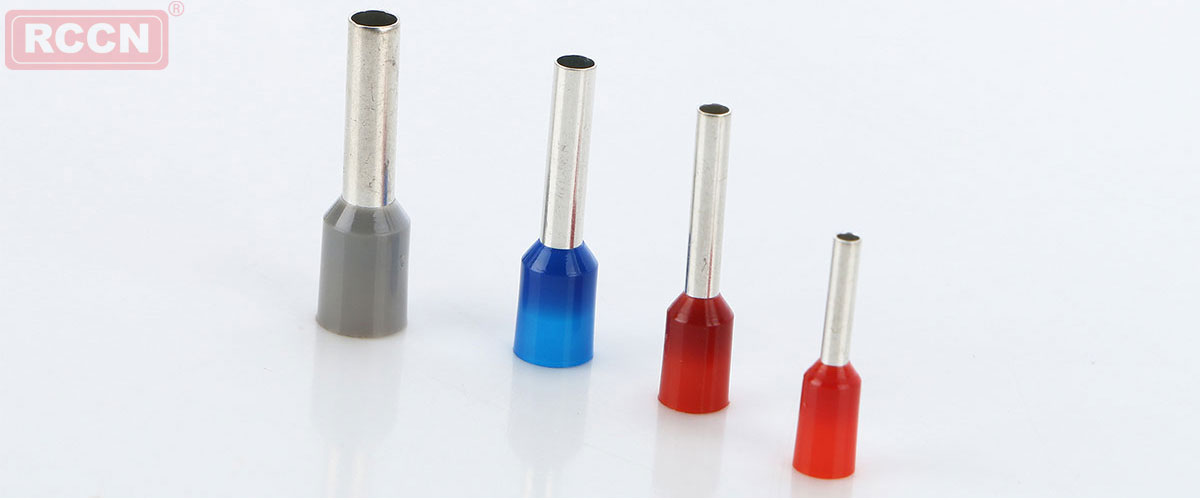

Insulated Cord End Terminals

Use note：series from 0.25to 16
installed by tool of YAC series
series 25 to 150 installed by
tool of YYT series
Insulated Cord End Terminals ETN

Specification

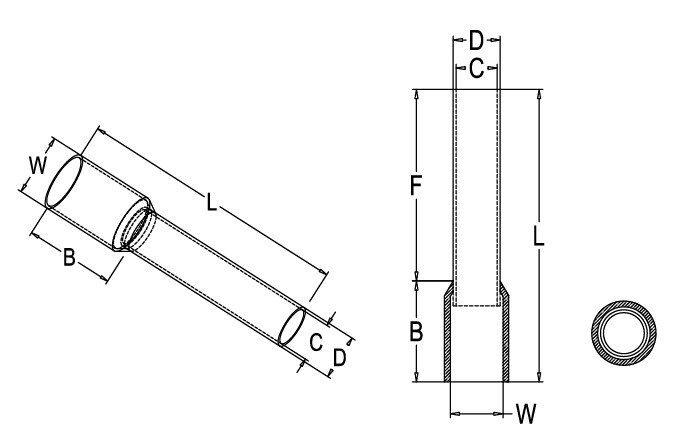

Item No.  DIMENSION Insulated square INSULATION COLOR
F L W B D C A.W.G mm2
mm mm mm mm mm mm Germany France
ET0.25-6N 6 10.0 2.5 4.0 1.05 0.75 #26 0.25 Blue Purple
ET0.25-8N 8 12.0
ET0.3-6N 6 10.5 2.5 4.0 1.1 0.8 #24 0.35 Blue Purple
ET0.3-8N 8 12.5
ET0.5-6N 6.0 12.0 2.6 6.0 1.3 1.0 #22 0.5 Orange White
ET0.5-8N 8.0 14.0
ET0.5-10N 10.0 16.0
ET0.5-12N 12.0 18.0
ET0.75-6N 6.0 12.4 2.8 6.4 1.5 1.2 #20 0.75 White Blue
ET0.75-8N 8.0 14.6
ET0.75-10N 10.0 16.4
ET0.75-12N 12.0 18.4
ET1.0-6N 6.0 12.4 3.0 6.4 1.7 1.4 #18 1.0 Yellow Red
ET1.0-8N 8.0 14.6
ET1.0-10N 10.0 16.4
ET1.0-12N 12.0 18.4
ET1.5-8N 8.0 14.6 3.5 6.4 2.0 1.7 #16 1.5 Red Black
ET1.5-10N 10.0 16.4
ET1.5-12N 10.0 16.4
ET1.5-18N 18.0 24.4
ET2.5-8N 8.0 15.2 4.0 7.0 2.6 2.3 #14 2.5 Blue Gray
ET2.5-10N 10.0 16.0
ET2.5-12N 12.0 19.0
ET2.5-18N 18.0 25.0
ET4.0-9N 9.0 16.5 4.4 7.5 3.2 2.8 #12 4.0 Gray Orange
ET4.0-12N 12.0 19.5
ET4.0-18N 18.0 25.5
ET6.0-10N 12.0 20.0 6.3 8.0 3.9 3.5 #10 6.0 Black  Green
ET6.0-12N 12.0 20.0
ET6.0-18N 18.0 26.0
ET10-12N 12.0 21.5 7.6 9.5 4.9 4.5 #7 10.0 Milk
white  		Brown
ET10-18N 18.0 27.5
ET16-12N 12.0 22.2 8.8 10.2 6.2 5.8 #5 16.0 Green  Milk
white
ET16-18N 18.0 28.2
ET25-16N 16.0 29.0 11.2 13.0 7.9 7.5 #4 25.0 Brown
  		Black
ET25-22N 22.0 35.0
ET35-16N 16.0 30.0 12.7 14.0 8.7 8.3 #2 35.0 Brown  Red
ET35-25N 25.0 39.0
ET50-20N 20 36.0 15.3 16.0 10.9 10.3 #1/0 50.0 Olive Green
ET50-25N 25 41.0
ET70-20N 20 37.0 18.5 17.0 14.3 13.5 #2/0 70.0 Yellow
ET70-25N 25 42.0
ET70-27N 27 44.0
ET95-25N 25 44.0 18.5 19.0 15.1 14.7 #3/0 95.0 Red
ET120-27N 27 48.0 20.0 21.0 17.5 16.5 #4/0 120.0 Black
ET120-32N 32 52.6 23.4 21.0 17.5 16.5 #4/0 120.0
ET150-25N 25 50.6 26.0 25.6 20.5 19.5 250-300mcm 150.0 Yellow
ET150-27N 27 52.6 26.0 25.6 20.5 19.5 150.0
ET150-32N 32 57.6 26.0 25.6 20.5 19.5 150.0
