Conditions of Use:

Environment temperature:-20℃~80℃

The relative humidity of the atmosphere does not exceed 50% when the

ambient air temperature is +40℃, and higher relative humidity is allowed at a

lower temperature, for example, it can reach 90% at +20℃, which may cause

occasional condensation due to temperature changes. Special measures should

be taken.

Altitude: The altitude of the installation site does not exceed 3000m.

Pollution level: Level 2;

Installation category: Ⅱ, Ⅲ category.

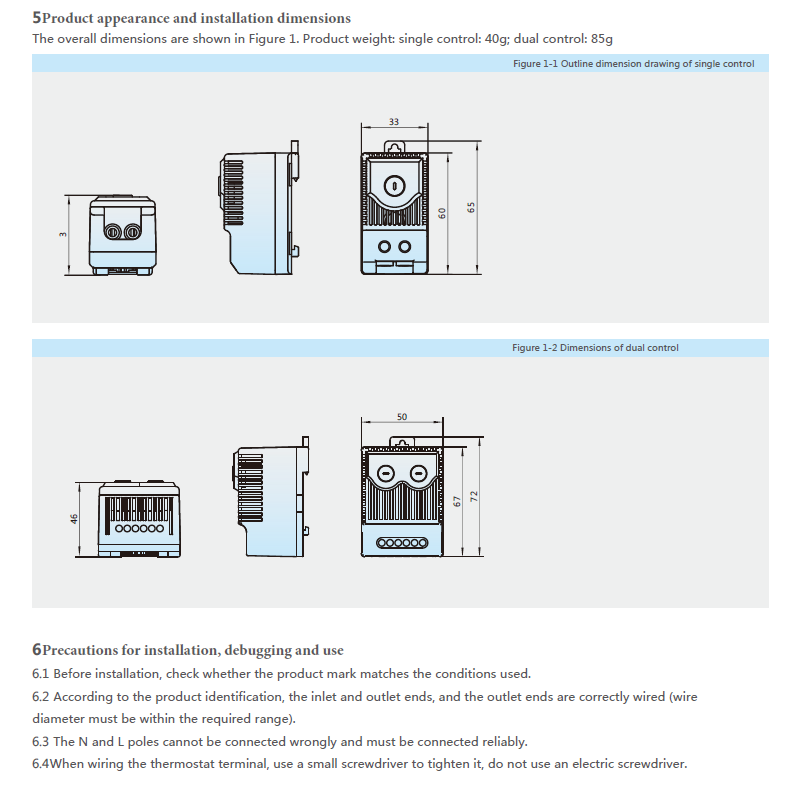

Installation conditions: Use TH35-7.5 type mounting rail to install, and the

inclination between the mounting surface and the vertical surface should not

exceed 5°.

Transportation and storage conditions:

Temperature -20℃~80℃.

Relative humidity: ≤95%.

The product should be handled with care, not upside down, to avoid strong collision.
