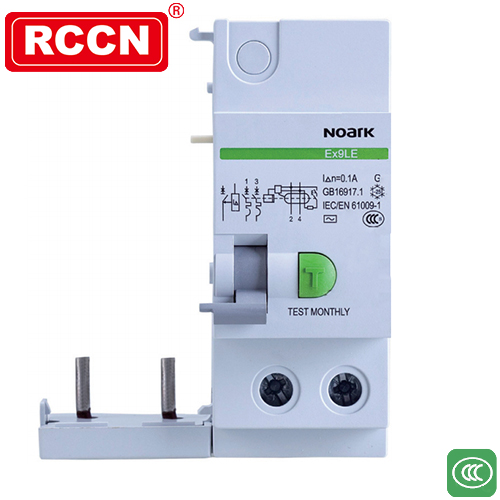

Ex9LE residual current action accessory

Leakage Protection

Can only be used with Ex9B products.
Product standard: GB16917.1 IEC/EN 61009-1
Product Certification CCC, CE, CB, ESC, SAA
Product poles 1P+N, 2P, 3P, 3P+N, 4P
Residual current type AC, AC-S, A, A-S
Shelf current ≤40A; ≤63A
Rated residual operating current 10mA, 30mA, 100mA, 300mA
Protection level IP40 (front) IP20 (terminal)
Ambient temperature -25°C—40°C
Application field: It can be used in combination with Ex9B. It can be applied to AC 50/60Hz, rated voltage is 230/400V, rated current to 63A, not only has the protection function of circuit breaker, but also has leakage protection function. Widely used in various low-voltage power distribution applications such as civil buildings, commercial buildings, industry, power supply, equipment and infrastructure.
